250VAC T85 1E4 로커 스위치

250VAC T85 1E4 미니 원형 로커 스위치 무료 샘플

상표:
Gangyuan
제품 번호.:
RS601D2-2010011BB
주문 (MOQ):
1
지불:
100% T/T Before Production
제품 기원:
Zhejiang, China (Mainland)
색깔:
black
배송 포트:
Ningbo/Shenzhen
리드 타임：
3 working days for payment

문의하기

제품 상세 정보

250VAC T85 1E4 미니 원형 로커 스위치 무료 샘플

Basic Information

P/A	RS601D2-2010011BB
Dimension	21x9.7mm
Rating	6A AC250V/10A 125VAC
Life cycles	10,000 cycles
Certificate	CE, CQC, ROHS, VDE etc
Button color	Red, green, black, white etc

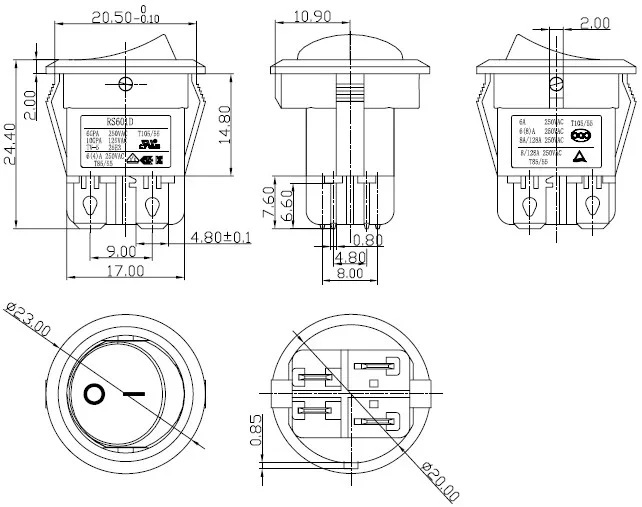

Dimension

t85 rocker switch.jpg

4 pin rocker switch wiring diagram.jpg

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tacts

3 ． Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperat ure

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

1e4 t85 switch
