T125 5e4 SPDT 마이크로 스위치

마이크로 스위치는 작은 간격과 큰 토크 덕분에 가전제품, 의료기기, 항공우주 분야 등에 널리 사용됩니다. 주로 온도, 위치, 액체 레벨 등을 감지하는 데 사용됩니다.

상표:
Gangyuan
제품 번호.:
G15-06SM-150-28
주문 (MOQ):
1000
지불:
T/T, Paypal full payment before produce
제품 기원:
ZheJiang China
색깔:
black
배송 포트:
Ningbo/ Shenzhen
리드 타임：
7-10 working days depends on actual orde

너비
20.00mm x 10.00mm
장착 유형
Through Hole
조명
Non-llluminated
IP 등급
IP4X

문의하기

제품 상세 정보

이름에서 알 수 있듯이, mini push button micro switch uses a very small force switch. It is a kind of switch in which external mechanical force acts on the movable reed through the transmission element, so that the fixed contact and the movable contact at the end are quickly connected or disconnected.

Product Description

Product Name	Micro switch
Operation position	11.4 ± 0.4mm
Rating	6A 125VAC/250 VAC
Operating force	150 ± 50gf
Pre travel	1.5mm Max
Life	10000 cycles
Pin	3 PIN

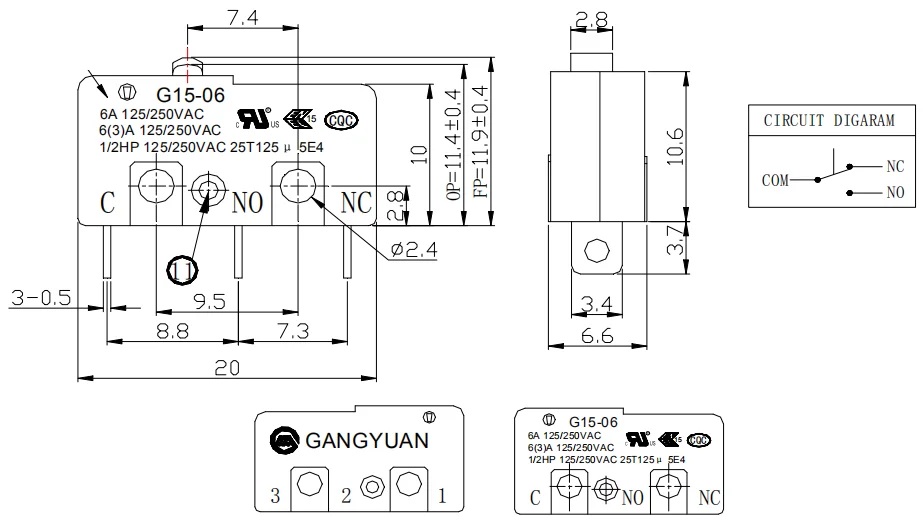

Drawing

Working principle

The external mechanical force acts on the reed through the transmission element (press pin, button, lever, roller, etc.). When the action reed moves to the critical point, it will immediately produce an action, causing the action contact to quickly open or close at the end of the action reed and the fixed contact.

When the force on the transmission element is eliminated, the acting reed will produce a reverse force. When the reverse stroke of the transmission element reaches the critical point of the action of the reed, the reverse action is completed immediately.

The contact distance of the touch tactile micro switch is small, the action stroke is short, the pressing force is small, and the on-off is rapid.

Application of micro switch

1. Electronic equipment, instrumentation, mining, power systems, household electrical equipment, and military fields such as aerospace, aviation, missiles, and tanks.
2. Computer mouse, automotive electronics, communication equipment, military products, as well as testing instruments, gas water heaters, gas stoves, small household appliances, microwave ovens, rice cookers, float equipment, medical equipment, building automation, power tools and general electrical and Radio equipment, 24-hour timer.
